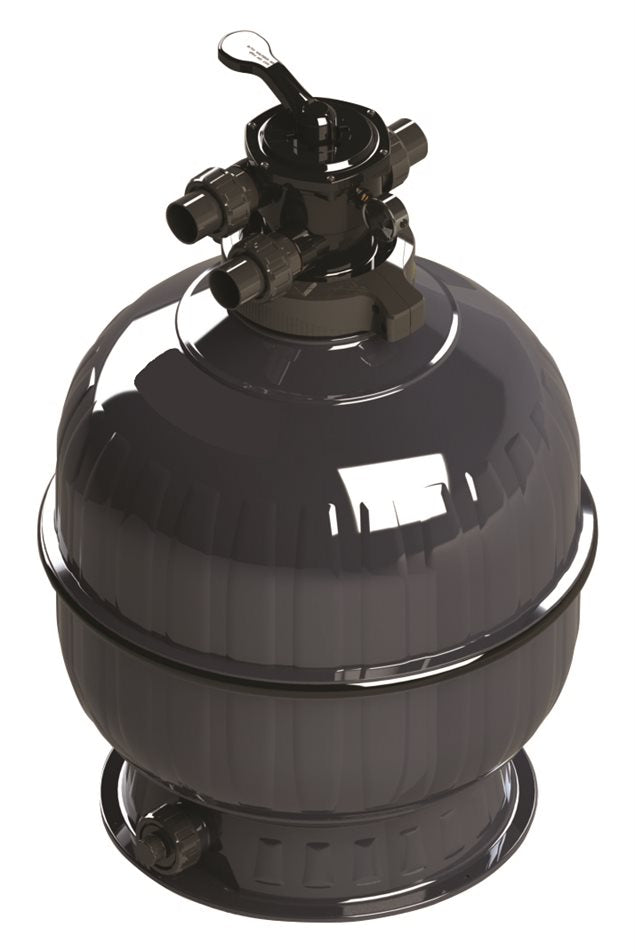

AstralPool’s CA Media Filter is 100% designed and made in Australia from the most advanced injection moulding and assembly process of any filter. Engineered and designed for high strength, long life, optimal flow rates and easy installation and service the CA Media filter range provides the best value for money and is designed for tough Australian conditions.

CRYSTAL CLEAR

The AstralPool CA Media Filter produces crystal clear water using fine sand or recycled crushed glass media as the filter medium. Each filter incorporates an engineered multiport valve to direct the water flow and minimise the resistance through the filter, making the CA Media Filter ideal for today’s energy efficient high performance
pumps.

FILTER BREAKTHROUGH

The CA range represents the largest investment in design and production for any residential filter range using high quality hardened steel tooling to produce high tolerance, high strength tanks which provide the longest trouble free life available. This
high tolerance enables the screw on lock ring to secure the multiport valve along with self sealing barrel unions which enable fast, simple installation, easy service and access to the filter media in future years.

SUITED FOR YOU

The CA range is available in 4 models complete with 6 way multiport valve, pressure gauge and air release, barrel unions and backwash sight glass. AstralPool CA Media Filters are perfect to combine with Viron Glass filter media for clean, healthy and
sparkling pool water.

CAPACITY TABLE

Tank Diameter 665 mm
Filter Area 0.30 Sq M
Port Size 40 mm
6 Hour Turnover 100,800 ltrs
8 Hour Turnover 134,400 ltrs
Sand Required 120 kg
Viron Course 45kg
Viron Fine 75kg

DIMENSIONS WITH VALVE INSTALLED

Height 106 cm
Width 66.5 cm
Shipping Weight 20kg
